RO Control Panel
Our product range includes a wide range of Proton RO Control Panel.

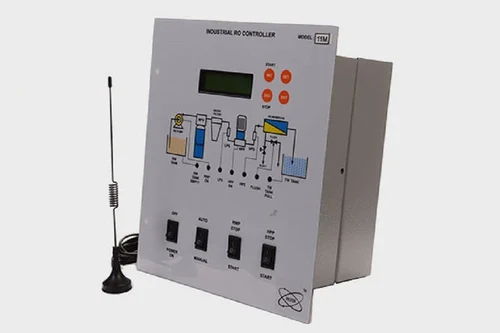

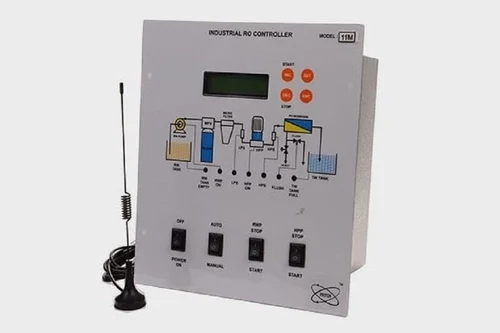

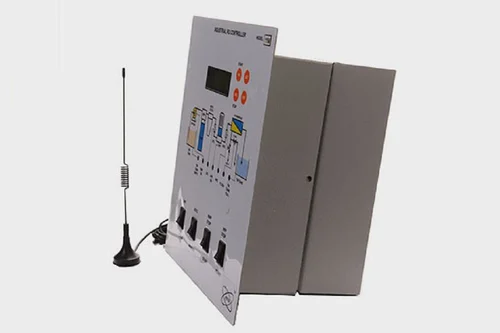

Proton RO Control Panel
₹ 3,799/Piece| Material | Mild Steel |
| Phase | Single Phase |
| Power | 1 kW |
| Brand | Proton |
| Model Name | 11M |
Manual Mode: - RWP and HPP can be started through from panel keys. HPP is interlocked with RWP in this mode. The pump motor protection is active in this as well.
- Input voltage:230VAC, 50Hz
- Output current:10 A.
- Resolution:Current: - 0.1 A
- Environmental:1.Working Temp :0 to 55° C 2.Storage Temp :10 to 70° C 3.Relative humidity :0 – 95 % Non-Condensing 4.Warm up time :10 Sec
- Enclosure:
1.Mounting :Panel mounting.
2.Dimensions :165 (W) X 60 (L) X 115 (H).
Cutout 157 (W) x 109 (H).
All dimensions are in mm. - Field Calibration:Current Calibration (Offset) can be done at site
- Cutout Dimensions:Current Calibration (Offset) can be done at site
- Field Calibration:Current Calibration (Offset) can be done at site
- Field Calibration:Current Calibration (Offset) can be done at site
The Industrial RO control panel provides for very convenient mounting and easy field cable terminations. Removable terminals blocks are provided for easy terminations. Different sizes of terminals are selected for process and power connections to avoid wrong connections. The industrial RO control panel is based on state of the art technology processor. It has 6 digital inputs and four outputs. It also has Conductivity and Flow (pulse type) Sensor inputs.
