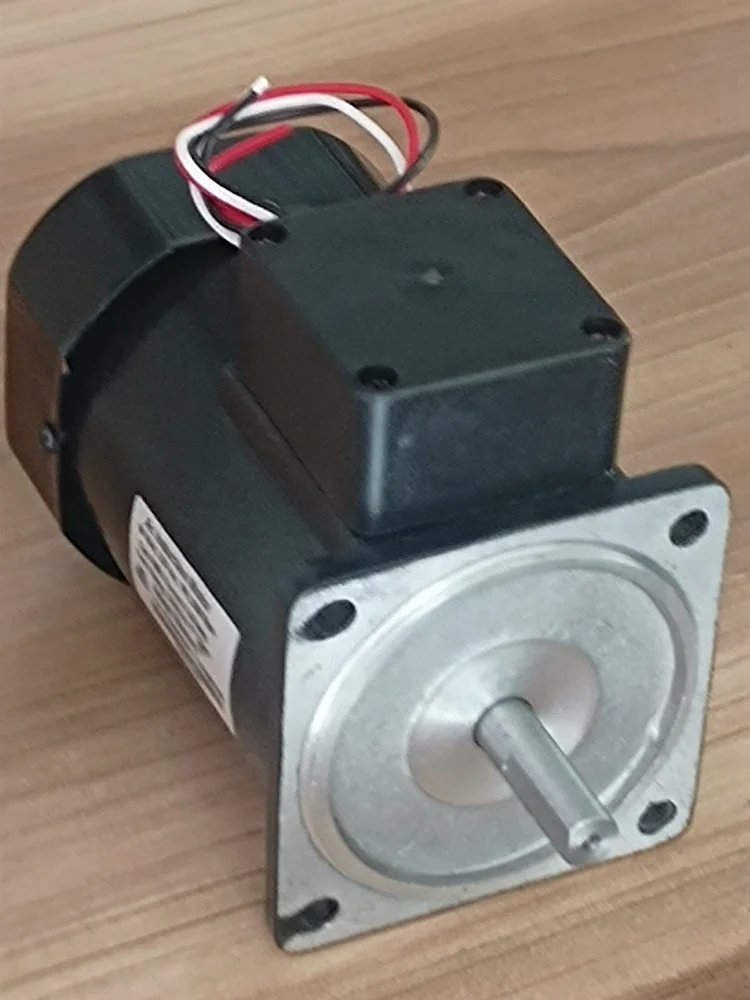

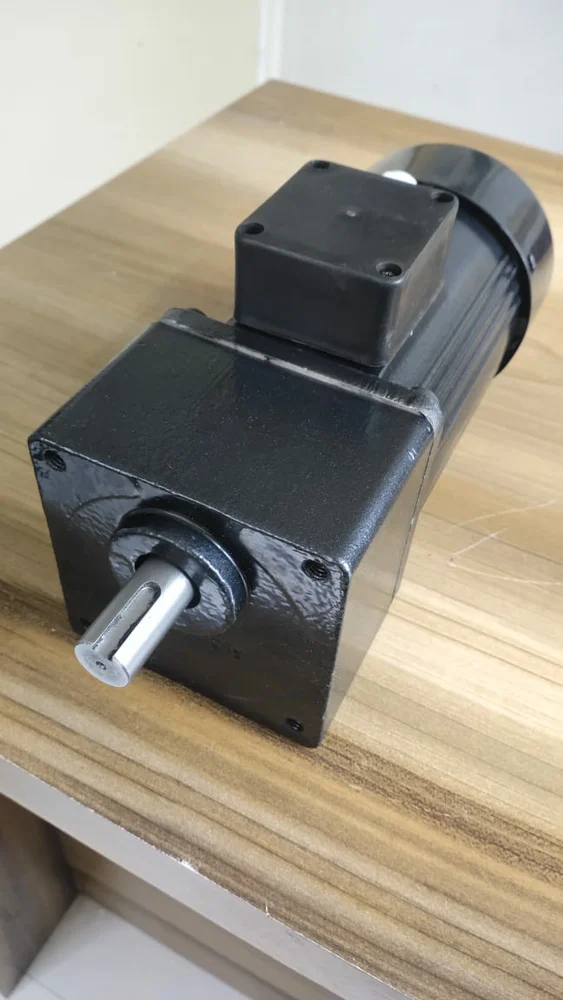

40 Watt AC Induction Gear Motor

FHP Geared Motor

Approx. Rs 5,200 / Piece

We are offering FHP Geared Motor

Wattage11 - 50W
Speed1440 rpm
PhaseSingle Phase
No. of Poles4
Voltage220 V
Frame Size90
Frequency50 Hz
Type of MotorGear motor
Torque2.2 NM
BrandAdept
Enquiry Now Save

Specification

Model Output Power Frequency Supply Voltage Current Starting Torque Kg-cm Rated Torque Kg-cm Rated Speed RPM Capacitor IT
80 1W 4G 25 25 60 Single phase 110 V 0.4 1.2 1.6 1450 2.5
80 IX 4G 25 25 50 Single phase 230 V 0.24 1.5 1.9 1250 1.5
80 IY 4G 25 25 60 Three phase 230 V 0.2 1.6 1.6 1450
80 IY 4G 25 25 50 Three phase 230 V 0.2 1.6 1.9 1250
80 IY 4G 25 25 60 Three phase 145 V 0.12 1.6 1.9 1250

Additional Information

  • We are a leading Manufacturer of 25 watt fhp gear motor, 90 watt ac geared motor, 0.25 hp ac induction motor, 15 watt induction gear motor, helical inline gear motors and in line gear motor from Pune, India.
Similar items
Reversible Motor Rs.2200
180 watt induction motor Rs.5800
90 Watt Induction Gear Motor Rs.3300
Brake Rs 3000

Gear motor Torque Table:

The maximum permissible torque is 80. kg.cm

50 HZ | Unit: kg.cm

RPM 500 416 300 250 200 166 120 100 83 60 50 41 30 25 20 16 15 13 10 8.3
Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180
Output Torque 5 6 8 10 12 15 21 25 30 37 45 54 68 80 80 80 80 80 80 80

60 HZ | Unit: kg.cm

RPM 600 500 360 300 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10
Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180
Output Torque 4.1 5 6.9 8.3 10 12 17 21 25 31 37 45 56 67 80 80 80 80 80 80
